Monarch® Plasmid Miniprep Kit |NEB酶试剂 New England Biolabs

发表于由

上海金畔生物科技有限公司代理New England Biolabs（NEB）酶试剂全线产品，欢迎访问官网了解更多产品信息和订购。

产品信息

The Monarch Plasmid Miniprep Kit is a rapid and reliable method for the purification of high quality plasmid DNA. This method employs standard cell resuspension, alkaline lysis, and neutralization steps, with the additional benefit of color indicators at certain steps to easily monitor completion. Unique wash buffers ensure salts, proteins, RNA and other cellular components are removed, allowing low-volume elution of concentrated, highly pure DNA. Protocols are fast and user friendly, saving you valuable time. Elution in as little as 30 μl provides concentrated DNA for use in downstream applications, such as restriction digests, DNA sequencing, PCR and other enzymatic manipulations. Designed with sustainability in mind, Monarch kits use significantly less plastic and responsibly-sourced, recyclable packaging.

View our videos on protocols, tips, and recycling Monarch.

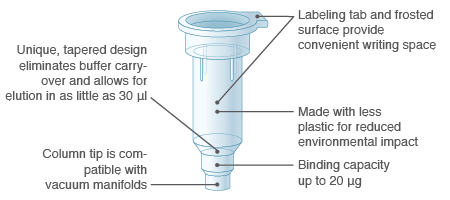

Monarch Plasmid Miniprep Column Design
Monarch® Plasmid Miniprep Kit |

Advantages:

  • Elute in as little as 30 μl
  • Prevent buffer retention and salt carry-over with optimized column design
  • Reduce hands on time with faster protocols and less spin time
  • Monitor completion of certain steps using colored buffer system
  • No need to add RNase before starting
  • Easily label columns using tab and frosted surfaces
  • Buffers and columns available separately
  • Significantly less plastic used when compared with other kits
  • Responsibly-sourced and recyclable packaging
  • No hazardous materials fees


Specifications

Culture Volume: 1-5 ml, not to exceed 15 OD units
Binding Capacity: up to 20 μg
Plasmid Size: up to 25 kb
Typical Recovery: up to 20 μg. Yield depends on plasmid copy number, host
strain, culture volume, and growth conditions.
Elution Volume: ≥ 30 μl
Purity: A260/280 and A260/230 ≥ 1.8
Protocol Time: 10½ minutes of spin and incubation time
Compatible
Downstream
Applications:		 restriction digestion and other enzymatic manipulations,
transformation, transfection, DNA sequencing, PCR, labeling,
cell-free protein synthesis, etc.
Monarch Plasmid Miniprep Kit Protocol
Monarch® Plasmid Miniprep Kit |

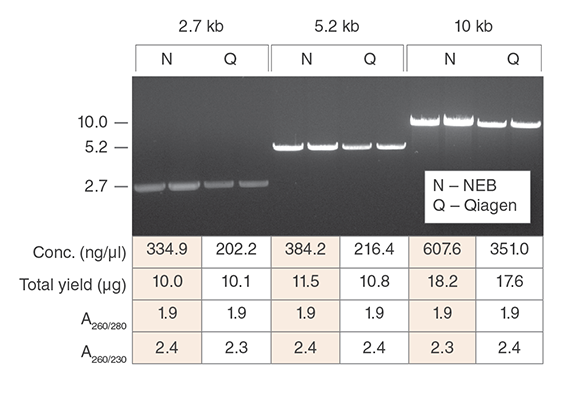

Monarch Plasmid Miniprep Kits consistently produce more concentrated plasmid DNA with equivalent yield, purity and functionality as compared to the leading supplier
Monarch® Plasmid Miniprep Kit |
Preps were performed according to recommended protocols using 1.5 ml aliquots of the same overnight culture. One microliter of each prep was digested with HindIII-HF (NEB #R3104) to linearize the vector and the digests were resolved on a 1% w/v agarose gel.

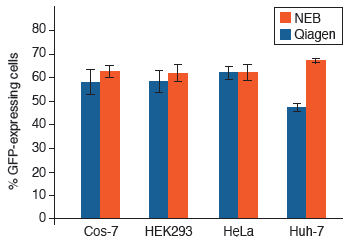

Plasmid DNA purified using the Monarch Plasmid Miniprep Kit produces transfection efficiencies equivalent to or better than plasmid DNA purified using the Qiagen QIAprep® Spin Miniprep Kit
Monarch® Plasmid Miniprep Kit |
Plasmid DNA encoding constitutively expressed GFP (pEGFP-C2) was prepared using either Monarch Plasmid Miniprep Kit or Qiagen QIAprep Spin Miniprep Kit. Four different cell lines (Cos-7, HEK293, HeLa, and Huh-7) were grown to 80-90% confluence and transfected with 100 ng of each plasmid, in complex with 0.3 μl Lipofectamine 2000, and 10 μl Opti-MEM. Five replicates for each cell type were performed using both DNA preps. GFP expressing cells were counted by flow cytometry 48 hrs post-transfection with a minimum of 2000 events collected per well. Average percentage of cells expressing GFP from all replicates is graphed and used as a measure of transfection efficiency.

DNA from Monarch Plasmid Miniprep Kit is reproducibly compatible with DNA sequencing.
Monarch® Plasmid Miniprep Kit |
Plasmid DNA from three separate preps was sequenced using BigDye® Terminator chemistry on an Applied Biosystems 3730XL DNA Analyzer. The electropherograms demonstrate the quality of the DNA is reproducible.



产品类别:
Plasmid Purification Products,
Nucleic Acid Purification Products

应用:
Nucleic Acid Purification

  • 试剂盒组成

    本产品提供以下试剂或组分：

    NEB # 名称 组分货号 储存温度 数量 浓度
    • T1010S     25
        Monarch® Plasmid Miniprep Columns T1017-2 25 1 x 50 columns Not Applicable
        Monarch® DNA Elution Buffer T1016-2 25 1 x 7 ml Not Applicable
        Monarch® Plasmid Wash Buffer 2 T1015-2 25 1 x 6 ml Not Applicable
        Monarch® Plasmid Wash Buffer 1 T1014-2 25 1 x 13 ml Not Applicable
        Monarch® Plasmid Neutralization Buffer (B3) T1013-2 25 1 x 22 ml Not Applicable
        Monarch® Plasmid Lysis Buffer (B2) T1012-2 25 1 x 11 ml Not Applicable
        Monarch® Plasmid Resuspension Buffer (B1) T1011-2 25 1 x 11 ml Not Applicable
    • T1010L     25
        Monarch® Plasmid Miniprep Columns T1017-2 25 5 x 50 columns Not Applicable
        Monarch® DNA Elution Buffer T1016-3 25 1 x 25 ml Not Applicable
        Monarch® Plasmid Wash Buffer 2 T1015-3 25 1 x 30 ml Not Applicable
        Monarch® Plasmid Wash Buffer 1 T1014-3 25 2 x 27 ml Not Applicable
        Monarch® Plasmid Neutralization Buffer (B3) T1013-3 25 1 x 110 ml Not Applicable
        Monarch® Plasmid Lysis Buffer (B2) T1012-3 25 2 x 27 ml Not Applicable
        Monarch® Plasmid Resuspension Buffer (B1) T1011-3 25 1 x 55 ml Not Applicable

  • 优势和特性

    Features

    • Elute in as little as 30 μl
    • Prevent buffer retention and salt carry-over with optimized column design
    • Reduce hands on time with faster protocols and less spin time
    • Monitor completion of certain steps using colored buffer system
    • No need to add RNase before starting
    • Easily label columns using tab and frosted surfaces
    • Buffers and columns available separately
    • Significantly less plastic used when compared with other kits
    • Responsibly-sourced and recyclable packaging
    • No hazardous materials fees

  • 相关产品

    相关产品

    • 6X 紫色凝胶上样染料
    • 6X 紫色凝胶上样染料，无 SDS
    • Quick-Load® 紫色 1 kb DNA Ladder
    • Quick-Load® 紫色 100 bp DNA Ladder
    • Quick-Load® 紫色 1 Kb Plus DNA Ladder
    • T4 DNA 连接酶
    • 平末端/TA 连接酶预混液
    • 瞬时粘性末端连接酶预混液
    • Monarch® DNA 胶回收试剂盒
    • Monarch® PCR & DNA 纯化试剂盒（5 μg）

    单独销售的组分

    • Monarch® Plasmid Miniprep Columns
    • Monarch® 质粒重悬缓冲液（B1）
    • Monarch® 质粒裂解液（B2）
    • Monarch® 质粒中和缓冲液（B3）
    • Monarch® 质粒洗涤缓冲液 1
    • Monarch® 质粒洗涤缓冲液 2
    • Monarch® DNA 洗脱缓冲液

  • 注意事项

    1. The kit should be stored at room temperature. Always keep buffer bottles tightly closed and keep columns sealed in the enclosed zip-lock bag. After Plasmid Neutralization Buffer (B3) is opened, it should be stored at 4°C. For information regarding the composition of buffers, please consult the Safety Data Sheets. Proper laboratory safety practices should be employed, including the use of lab coats, gloves, and eye protection.

操作说明、说明书 & 用法

  • 操作说明

    1. Monarch® Plasmid DNA Miniprep Kit Protocol (NEB #T1010)
    2. Removal of Residual gDNA after Purification of Low Copy Plasmid using Exonuclease V (RecBCD)
    3. Download Quick Protocol Card T1010

  • 说明书

    产品说明书包含产品使用的详细信息、产品配方和质控分析。

    • manualT1010

  • 使用指南

    • Back to basics: Important things to keep in mind when purifying plasmids and DNA fragments
    • Dos and Don’ts of Plasmid Minipreps
    • Usage Guidelines for the Monarch Plasmid Miniprep Kit (#T1010) When Working with Low Copy Plasmids

  • 应用实例

    • Using Exonuclease V (RecBCD) to Eliminate Residual Genomic DNA When Purifying Low Copy Plasmids with the Monarch® Plasmid Miniprep Kit
    • A Practical Guide to Analyzing Nucleic Acid Concentration and Purity with Microvolume Spectrophotometers

FAQs & 问题解决指南

  • FAQs

    1. Can I purchase Monarch buffers and columns separately?
    2. Can I use water to elute the DNA when using the Monarch Kits?
    3. Which culture media do you recommend?
    4. Which strain(s) of E.coli do you recommend?
    5. What culture conditions do you recommend?
    6. I am seeing RNA in my miniprep DNA. How can I avoid this?
    7. What is the smallest volume of elution buffer that can be used with the Monarch Plasmid Miniprep Kit?
    8. What is the composition of each buffer provided with the Monarch Plasmid Miniprep Kit?
    9. Why do I see a smear above my plasmid band on an agarose gel?
    10. What are the additional bands I see on the gel?
    11. What factors affect recovery of plasmid DNA?
    12. What factors affect my (A260/A280) after doing a plasmid miniprep?
    13. What factors affect my (A260/A230) after doing a plasmid miniprep?
    14. What is the maximum binding capacity of the Monarch Plasmid Miniprep Column?
    15. What should I do differently when using a low copy plasmid?
    16. Do the dyes in the buffer present any issues for downstream applications?
    17. Can I use DNA isolated from the Monarch Plasmid Miniprep Kit for transfection?
    18. Are Monarch spin columns compatible with Vacuum Manifolds?
    19. Are plasmids recovered using the Monarch Plasmid Miniprep Kit endotoxin free?
    20. I have used 5 ml of cell culture for plasmid isolation with the Monarch Plasmid Miniprep kit and I am obtaining low amounts of plasmid and/or contaminating gDNA. Why is this, and what are your suggestions to improve yield and purity?
    21. If I need to clean up more than 5 μg of DNA, is there another higher capacity column alternative to the columns included in the Monarch PCR & DNA Cleanup kit (NEB #T1030)?

  • 问题解决指南


    No DNA Purified

    • Reagents added incorrectly. Check protocol to ensure buffers were added in the correct order and that the sample is bound, washed and eluted in the correct sequence.
    • Plasmid lost during growth of culture. Ensure proper antibiotic is used at correct concentration in order to maintain selection during growth. Do not sub-culture amplicillin-maintained cultures to avoid depletion of antibiotic by secreted β-lactamase. Use a fresh plate and avoid selecting satellite colonies when innoculating the culture.

    Low DNA Yield

    • Incomplete lysis. Ensure cell pellet is completely resuspended before addition of Plasmid Lysis Buffer (B2) and that color changes from light pink to dark pink. Take care to not use too many cells. If culture volume used is larger than recommended, scale-up buffers B1-B3 to ensure proper processing of the sample.
    • Plasmid loss during growth, see previous section.
    • Low-copy plasmid selected. Increase amount of cells processed and scale buffers accordingly.
    • Lysis of cells during growth. Harvest culture during transition from logarithmic growth to stationary phase (typically 12–16 hrs for growth of cultures in LB) to avoid lysis of cells common during extended periods of cell growth.
    • Incomplete neutralization. The sample tube should be inverted a sufficient number of times to produce a complete color change to yellow. Cell debris will appear in abundance. Nothing should be floating on the surface after centrifugation, but rather should be compacted into a pellet.
    • Incomplete elution. Larger elution volumes and longer incubation times can increase yield of DNA off the column, at the cost of dilution of the sample and increased processing times. For typical plasmids in the 3–10 kb range, the recommended elution volumes and incubation times are sufficient. For the purification of larger plasmids, heating the DNA Elution Buffer to 50°C prior to eluting and extending the incubation time after buffer addition to 5 minutes can improve yield.

    Low DNA Quality

    • Plasmid is degraded. Some E. coli strains (HB101 and the JM series) have high levels of endogenous endonuclease. Avoid using these when possible. If these strains are used, keep samples on ice during prep and ensure the Plasmid Wash Buffer 1 step is performed.
    • Plasmid is denatured. Using Plasmid Lysis Buffer (B2) introduces sodium hydroxide to the DNA. Extended incubation in the presence of sodium hydroxide can separate the strands, or denature the plasmid. Adhere to the protocol and ensure this step is completed within 2 minutes and promptly move on to the neutralization step.
    • Plasmid is contaminated with genomic DNA. Vigorous mixing after cell lysis and before pelleting of cell debris may cause shearing of the host cell chromosomal DNA and should be avoided. Additions of Plasmid Lysis Buffer (B2) and Plasmid Neutralization Buffer (B3) should be followed by careful inversion mixing. Do not vortex.
    • Improper storage. Ensure DNA is eluted in DNA Elution Buffer or nuclease-free water to maintain integrity and store at –20°C. DNA should not be stored in solutions containing magnesium.

    Low DNA Performance

    • Ethanol has been carried-over. Ensure final wash spin time is 1 minute to enable complete removal of the wash buffer from the column. Use care when transferring column to a new tube for the elution step to ensure column tip does not contact column flow-through. If there is any doubt, re-spin the column for 1 minute.
    • Excessive salt in sample. Ensure both Plasmid Wash buffers have been utilized according to the protocol. Unlike other commercial kits, all wash steps in the Monarch Plasmid DNA Miniprep Kit protocol are required. All steps should be performed as described to ensure the recovery of high-quality plasmid DNA.
    • Excessive carbohydrate carried over. Similar to the endogenous nucleases, strains like HB101 and the JM series, have high amounts of endogenous carbohydrate that can interfere with downstream enzymatic manipulations of plasmid DNA. Be sure to follow the protocol and make sure the Plasmid Wash Buffer 1 step is included.
    • Troubleshooting Guide for DNA Cleanup and Plasmid Purification

  • 实验技巧

    Monarch Plasmid Miniprep Kit protocol
    Learn how to do a plasmid miniprep using the Monarch Plasmid Miniprep Kit.
    Monarch® Plasmid Miniprep Kit |

    Tips for using the Monarch Plasmid Miniprep Kit
    Optimize your plasmid miniprep results with these quick tips for using the Monarch Plasmid Miniprep Kit.
    Monarch® Plasmid Miniprep Kit |

    How to recycle your Monarch Kit components
    Learn how you can easily recycle all of the components in your Monarch Kits.
    Monarch® Plasmid Miniprep Kit |
